Description

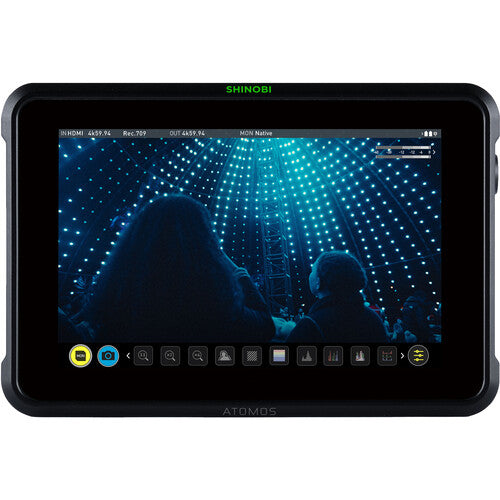

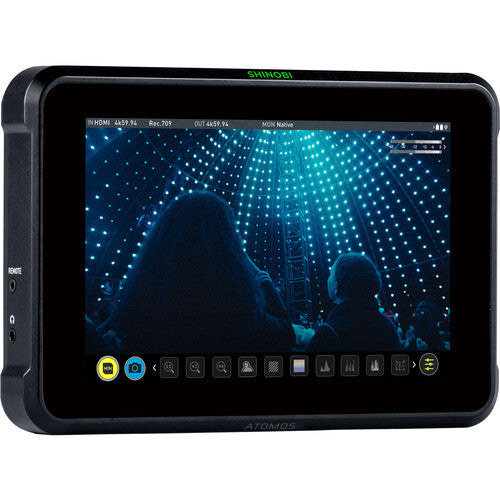

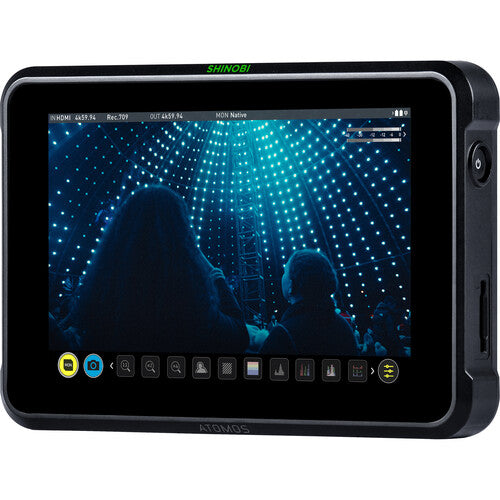

Add a bright, high-resolution monitor to your setup to preview 4K and 2K footage from cinema cameras such as the Z CAM E2, Panasonic BGH1, or RED KOMODO. The Atomos Shinobi 7" monitor features a 1920 × 1200 10‑bit FRC IPS touchscreen with an ultra‑bright, calibrated peak of 2200 cd/m², making it ideal for both indoor and outdoor use.
Advanced Video I/O & Cross‑Conversion

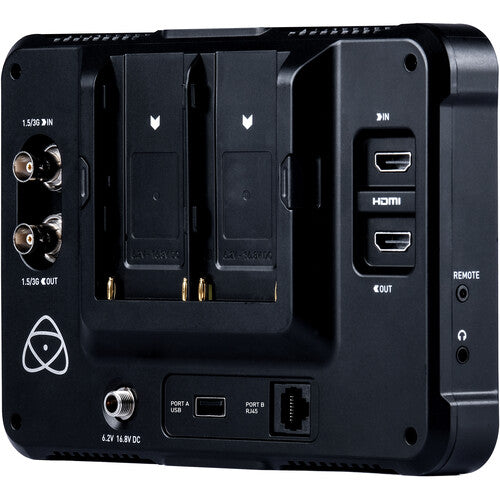

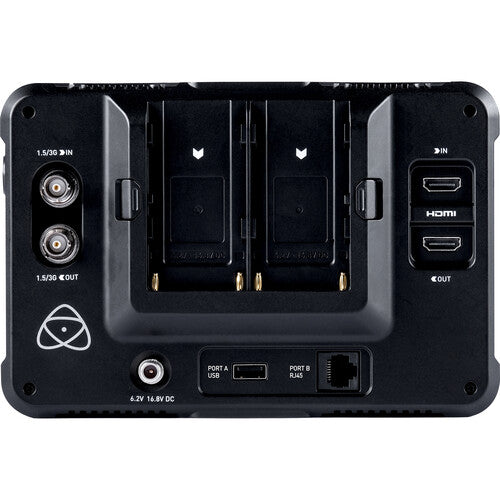

- Supports HDMI 2.0 input and loop output up to 4Kp60, plus 3G-SDI input/output up to 2Kp60.
- Built-in HDMI/SDI cross-conversion enables you to feed one input and output video through the other format.
High Dynamic Range with AtomHDR & LUT Support
- Displays over 10 stops of dynamic range via AtomHDR, allowing accurate real-time viewing of log footage.
- Converts log signal to HLG or PQ without needing LUTs, and reduces highlight clipping common in conventional monitors.
- Custom 3D LUTs (up to eight) can be loaded via SD card and previewed on input or loop outputs.
Precision Monitoring Tools
- Touchscreen interface runs AtomOS, complete with analysis tools such as waveform, RGB parade, histogram, focus peaking, false color, vectorscopes, zebra, RGB zoom, and framing guides.
- Supports anamorphic de‑squeeze options (2×, 1.5×, 1.33×, etc.) for accurate on-camera viewing of compressed footage.
Broad Log & HDR Format Support
Built to work seamlessly with log formats from leading cinema cameras:
- ARRI Log, Canon CLog, Sony SLog2/3, Panasonic V‑Log, RED LogFilm/Log3G10/Log3G12, Fuji F‑Log, Nikon N‑Log, JVC J‑Log, as well as PQ10k and HLG standards.
- HDR color gamuts supported include Rec.709, BT.2020, Canon Cinema, Sony SGamut3.cine, ARRI Wide Gamut, RED WideGamut, DragonColor2, and more.
Robust Design & Power Options
- Lightweight yet durable polycarbonate-ABS body weighing approx. 577 g (1.04 lb) without batteries.
- Powered by dual Sony L-series battery slots (hot-swappable) or universal power adapter via locking DC port.
- Features a built-in fan and heatsink to manage thermal performance during extended use.
- Touchscreen features thumbs controls for power, screen locking, and display brightness.
Camera Control & Future-Ready Connectivity

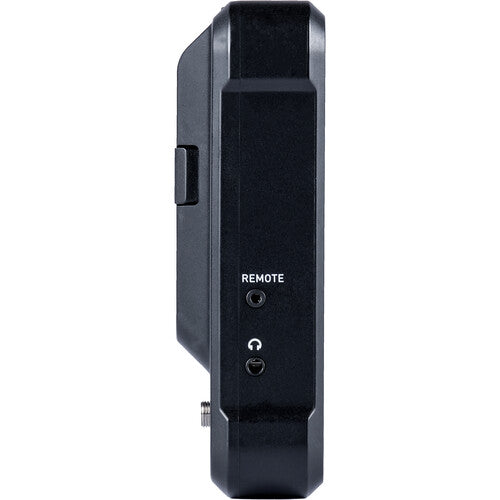

- Offers 2.5 mm control port (via optional USB-C serial cable) for live control of Z CAM E2-series cinema cameras, with firmware updates planned to support additional models.
- Includes USB-A and RJ45 Ethernet ports reserved for future camera control and network expansion.
Factory Calibration + Flexible LUT Options
- Factory-calibrated for accurate Rec.709 color accuracy; supports user calibration via X-Rite i1DisplayPro and free Atomos Calibration software.
Ideal For
- Content creators, cinematographers, and directors needing reliable monitoring on-camera or tethered.
- Ideal for focus pullers, vloggers, preview stations, and directors seeking reference display in both sunlight and low-light scenarios.
Tech Summary
- Display: 7″ 10‑bit FRC IPS, 1920×1200, 2200 cd/m²
- Inputs/Outputs: HDMI 4Kp60, SDI 2Kp60, loop via HDMI/SDI
- Dynamic Range: 10+ stops using AtomHDR (Log/PQ/HLG)
- Monitoring Tools: Zebra, histogram, waveform, peaking, false color, multi-scope, anamorphic de-squeeze, zoom
- Power: Dual NP-F L-series batteries or DC-in; hot‑swap support
- Control: 2.5 mm port (Z CAM E2 support), USB-A, RJ45 (future-ready)
- Weight: 577 g (monitor only)
- Build: Strong heat-dissipating housing with top/bottom 1/4″ mount points
