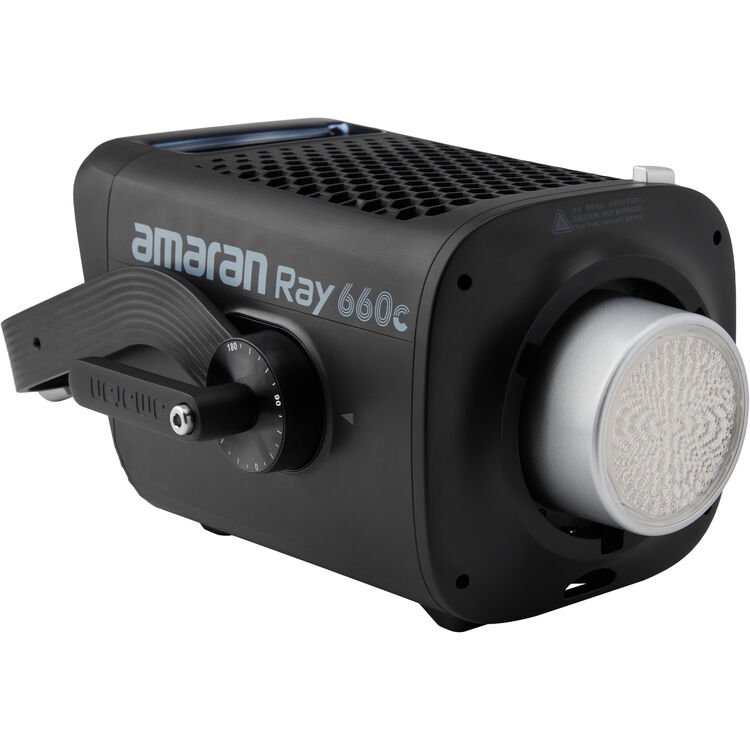

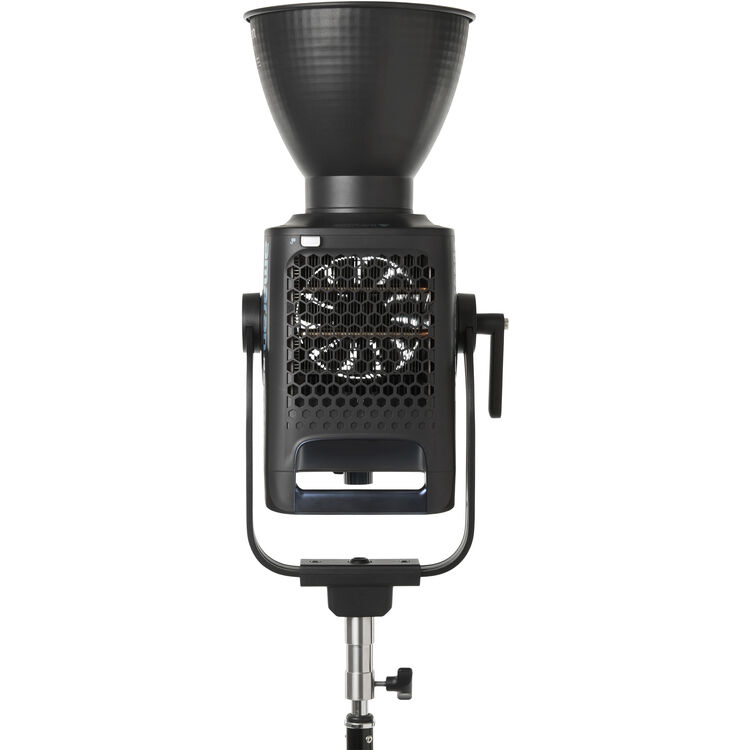

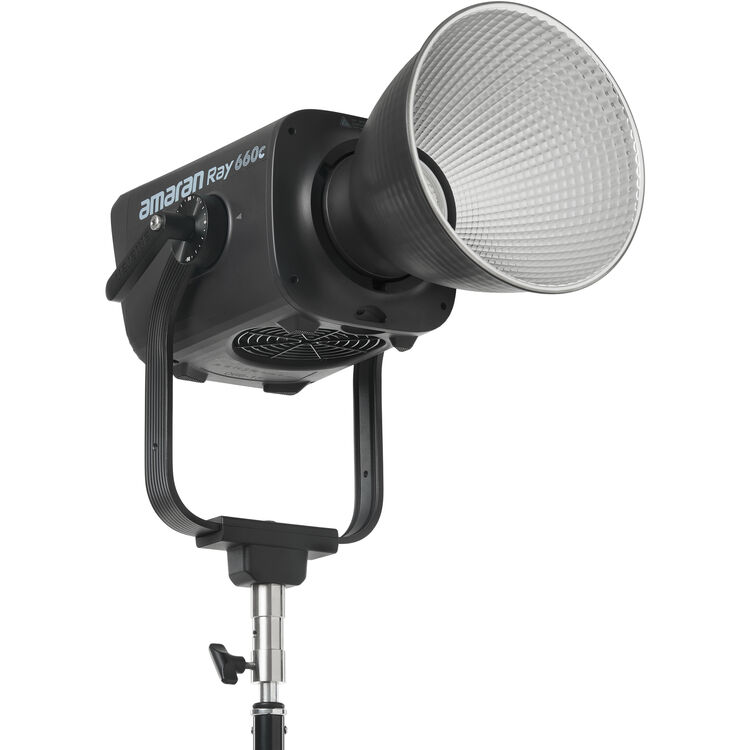

amaran Ray 660c RGB LED Monolight – Ultimate 660W Full-Color Output for Professional Studios
The amaran Ray 660c RGB LED Monolight is the brightest full-color COB fixture in amaran’s lineup, delivering a massive 660W of output powered by advanced OmniColor technology. Designed for large studios, commercial productions, and demanding lighting environments, the Ray 660c offers professional-grade performance with a streamlined monolight-style build. Featuring intuitive onboard controls, app connectivity, optional DMX integration, and an IP54-rated exterior, this fixture brings unmatched versatility and reliability to any production workflow.

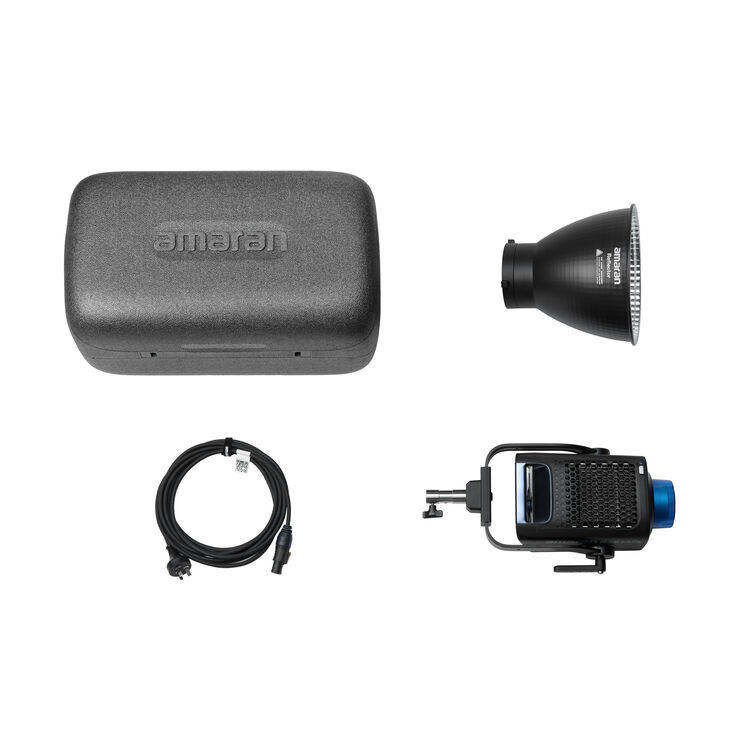

With a wide 1800–20,000K CCT+ range, full 360° RGB color, and exceptional accuracy, the Ray 660c ensures consistent, true-to-life results for broadcast, film, photography, and high-end content creation. amaran includes a reflector, single AC cable, and protective case, making it easy to store, transport, and set up between shoots.
Maximum Output for Any Creative Scenario
The Ray 660c delivers exceptional brightness designed for large scenes and demanding applications:
38,500 lux at 3.3' (4300K) from the bare light
Up to 91,600 lux at 3.3' with the included reflector
45,904 lumens total output
Adjustable green-magenta shift
Professional color accuracy with CRI 95, TLCI 95, SSI 80/87, TM-30 94/100
For additional creative control, pair the Ray 660c with the optional dedicated Fresnel to achieve variable spot-to-flood shaping.
360° Full-Color Control with OmniColor
Unlock full creative flexibility with advanced RGB capabilities:
Full-spectrum lighting with enriched red and blue channels
Standard 2300–10,000K CCT, expandable to 1800–20,000K in CCT+ mode
Smooth 0–100% stepless dimming
Full HSI and RGB controls for precise color output
12 cinematic lighting effects including lightning, fire, paparazzi, cop car, welding, fireworks, strobe, and more
Whether you’re lighting talent, environments, or stylized scenes, the Ray 660c enables complete control over mood and atmosphere.
Adaptive, Creator-Focused Operation
Streamline your workflow with smart, intuitive control options:
Quick Operation mode for instant adjustments
Customizable long-press and double-click shortcuts
High-Speed Photography and Studio modes
Bright, clear TFT display and tactile FlowTurn knob
One-tap NFC pairing to the amaran app
Bluetooth control with a wide 262.5' range
These features ensure fast, reliable operation on busy sets and in complex lighting environments.
Optional DMX via USB-C for Advanced Control

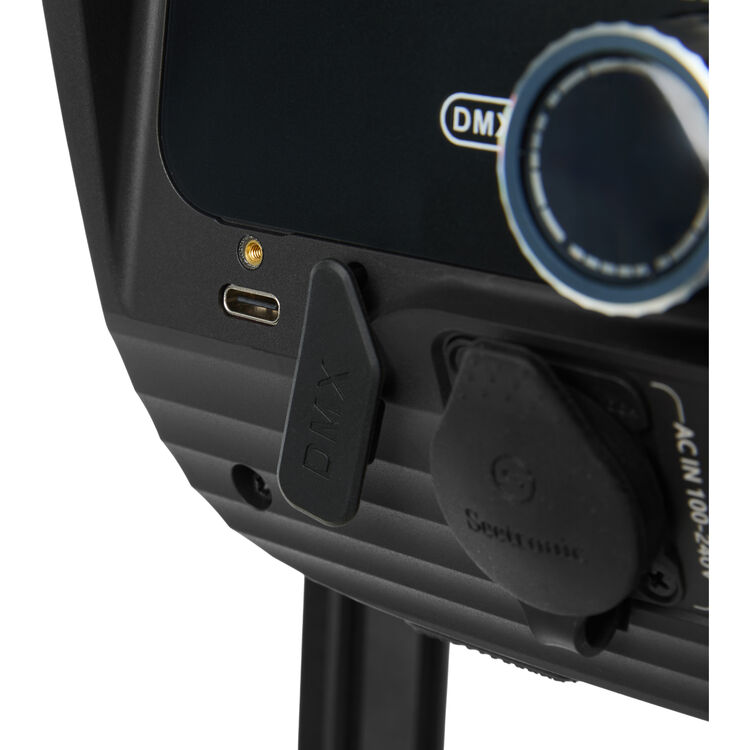

Scale up to professional production workflows using the optional amaran USB-C to 5-pin DMX in/out adapter, enabling:
Full DMX512 compatibility
Multi-light synchronization
Precision cueing
Integration with industry-standard lighting consoles and software
The Ray 660c easily adapts to broadcast studios, theatrical environments, and large-scale productions.

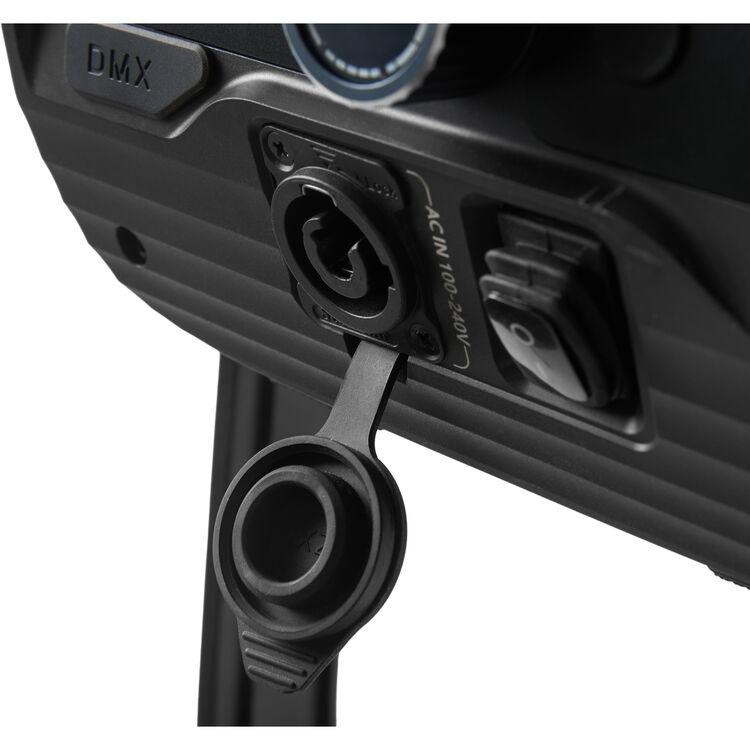

Integrated AC Power for a Clean, Efficient Setup
amaran’s innovative design makes the Ray 660c the first full-color COB LED in its class with a fully integrated power supply, allowing:
No external power bricks or clutter
Faster setup and teardown
Operation with a single 16.4' AC cable
This streamlined build is ideal for studios prioritizing efficiency and cable management.
IP54-Rated & Quiet for Professional Sets
Built for challenging environments, the Ray 660c features:
IP54 dust and splash resistance
Low-noise 28 dBA active cooling
Selectable silent and smart fan modes
This ensures clean audio and dependable performance in both indoor and outdoor productions.
Wide Bowens Compatibility & Professional Mounting

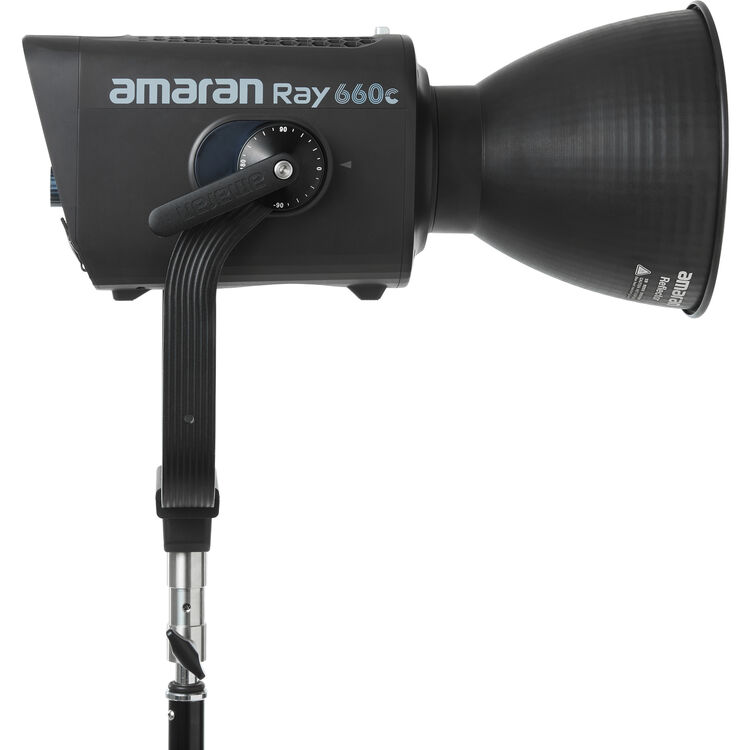

Customize your lighting using the Ray 660c’s full-size metal Bowens mount, compatible with:

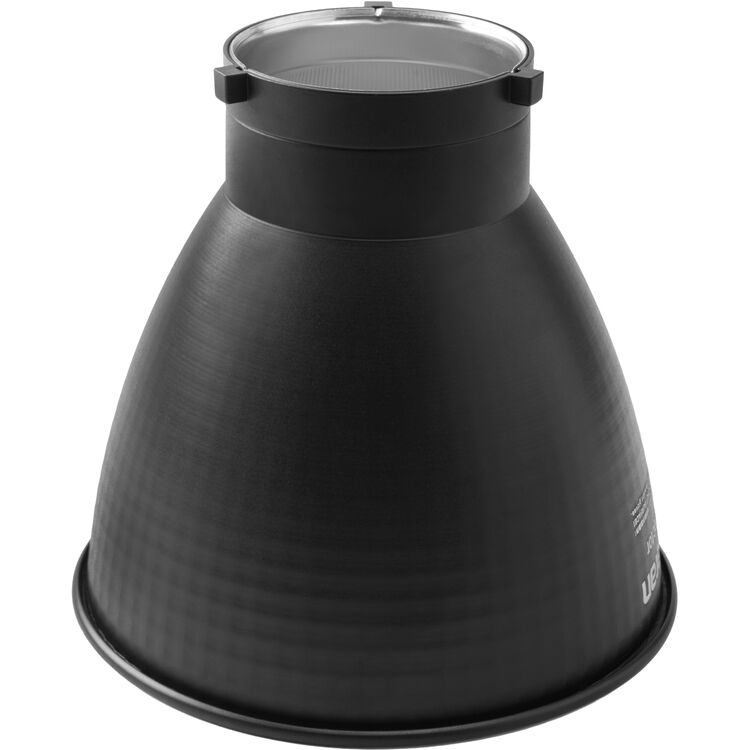

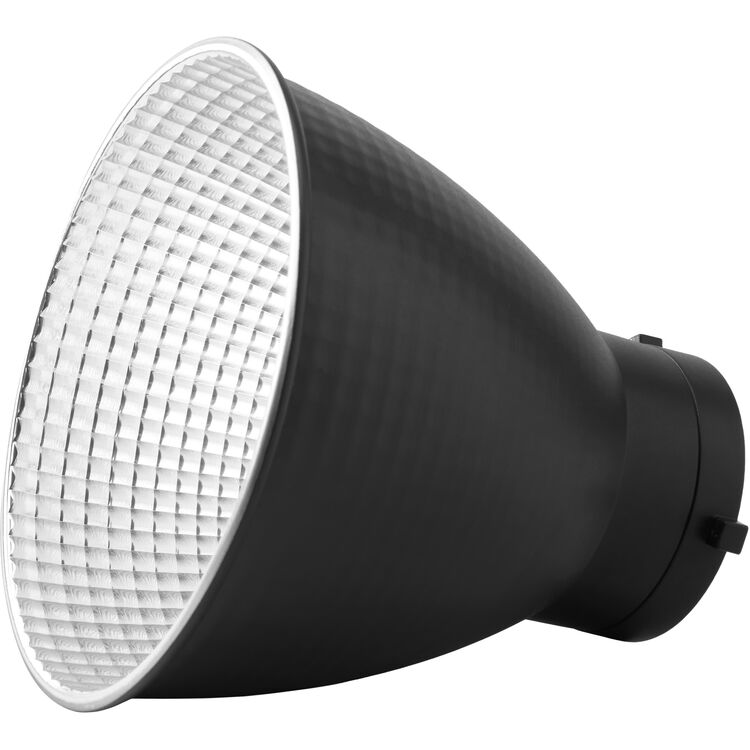

Included reflector
Optional dedicated Fresnel
A wide range of Bowens-standard modifiers

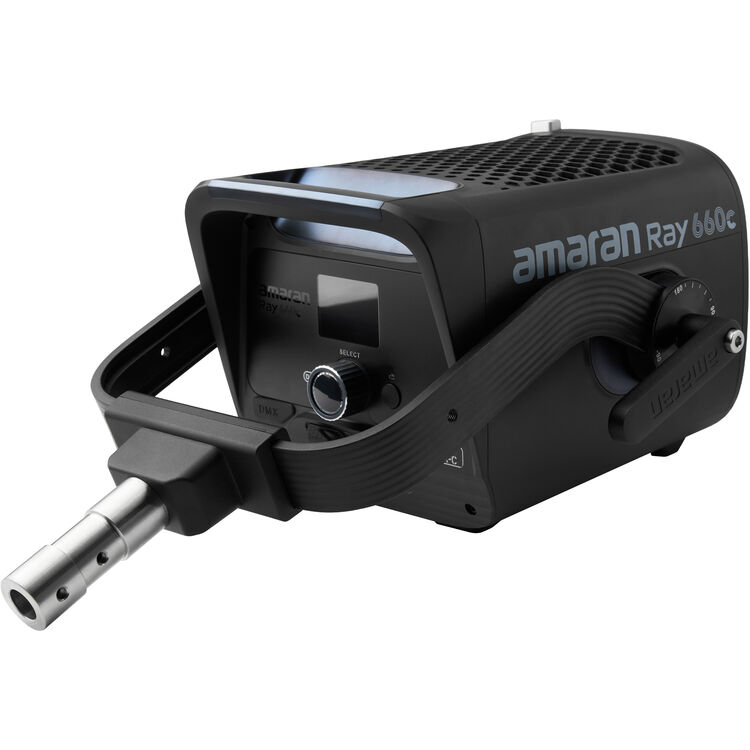

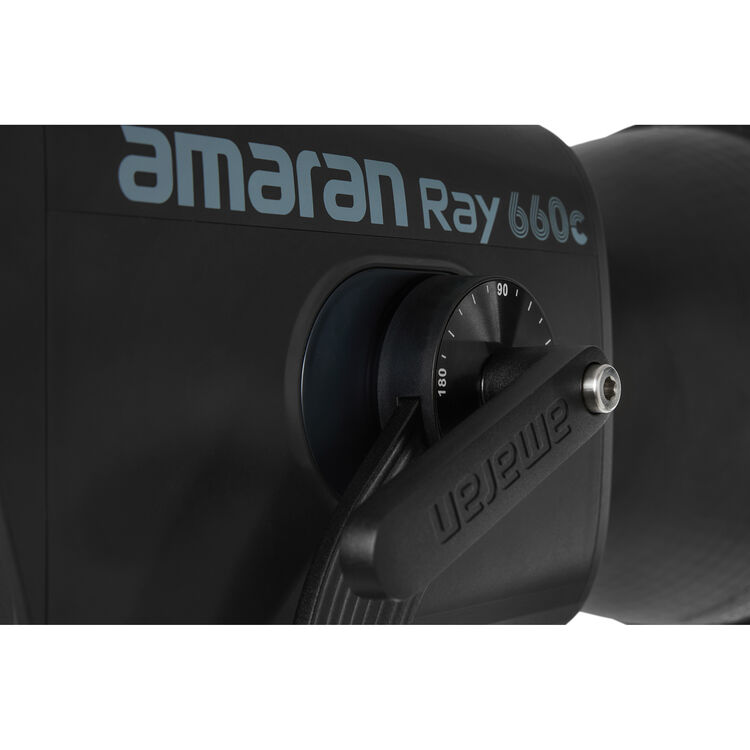

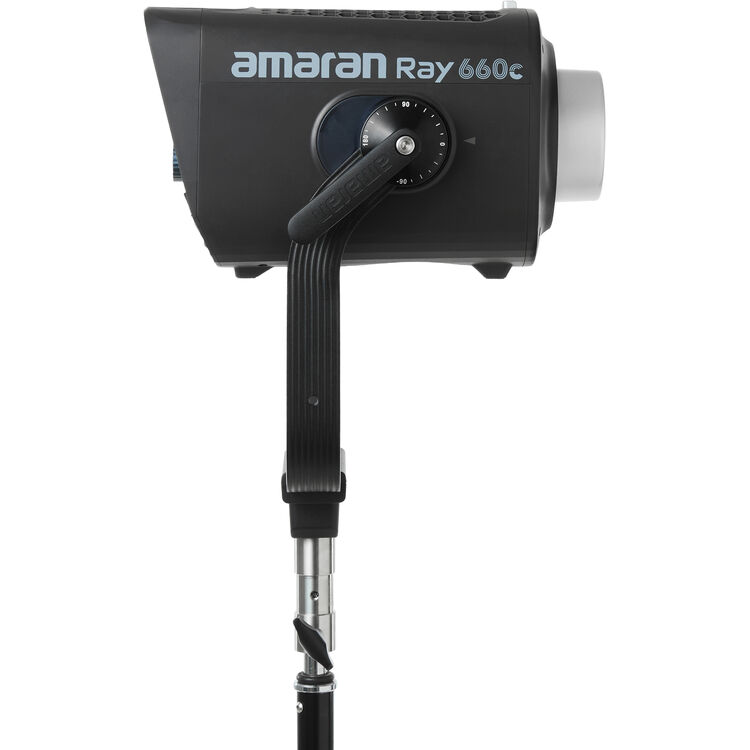

Its durable yoke design provides precise tilt control and includes a dual junior/baby pin receiver for effortless mounting. A built-in safety chain bracket enhances security on set.
